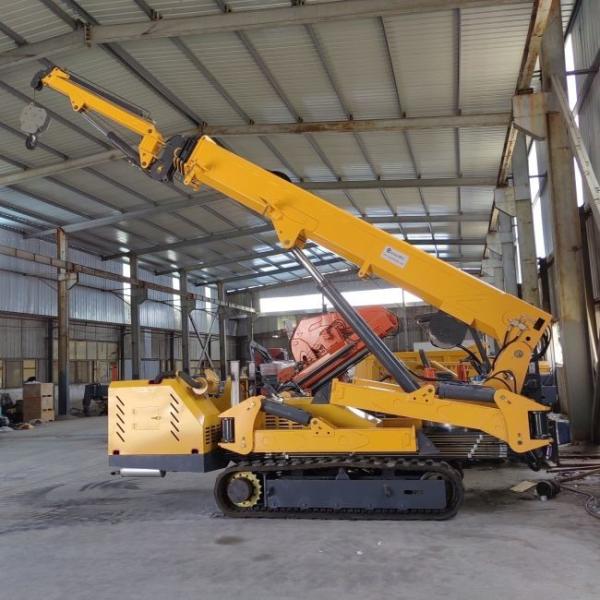

Diesel Engine Electricity Double Powers 8ton 17.8m Mobile Spider Track Crane
Advantages of 8ton spider track crane:
Double power supply, good stability, large load capacity, good anti-skid performance, and low requirements on the road surface. The crawler hydraulic spider cranes can eliminate the need for the hydraulic crane to occupy the transport truck, and can move on the construction sites by itself, and can even enter a small space for indoor lifting operations, making construction more convenient and feasible. Our spider cranes can add man basket, fly jib and vacuum lifters for glass lifting.
Applications of Spider Track Crane 8ton:
Adapt to any geographical environment and complex weather, especially suitable for disaster relief. It is widely used in the construction and repair work of electric power, railway, subway, highway, curtain wall, indoor steel structure and other projects. It is more suitable for large-scale material storage, large-scale manufacturing and other industries to use wireless remote control or fuselage switch to operate, safe and reliable operation, faster speed Miniature design, small size, strong lifting capacity, bid farewell to only relying on manpower in narrow spaces In the era of work, it not only improves work efficiency but also ensures work safety.
| Loading Capacity | 8 Tons |
| Lifting Height | Max. 17.8M |
| Overall Size | 5*1.6*2.2m(L*W*H) |
| Self-weight | 7500KG |
| Winch Device | Hook Lifting Speed | 10m/min |
| Wire Rope Type | Φ11mm×100m |
| Telescopic Device | Boom Type | 5-section boom, hexagonal structure |
| Boom Length/Time | 12.3m/54sec |
| Up and Down Device | Boom Angle/Time | 0-75°/25sec |
| Rotation Device | Rotation Angle/ Time | 0-360°(continuous)/38sec |
| Outrigger Device | Outrigger Active Form | Hydraulic expansion, automatic support |
| Maximum Extended Dimensions | left&right 7800mm; front&back 3600mm |
| Traction Device | Walking Method | Hydraulic drive motor |
| Walking Speed | 0-2.5km/h |
| Grade Ability | 20°(36%) |
| Engine Device | Engine Brand | Changchai/Yanmar |
| Start Method | Electric start |
| Working Temperature | 一5°C to +40°C |
| Fuel Type | Diesel |
| Tank Capacity | 48L |
| Emission Standards | II |
| Battery Capacity | 12V 45AH |
| Operation System | Operation of jib, outrigger, walking | Manual operation, manual walking |
Company Profits:
Henan Eternalwin Machinery Equipment, established in 1998, is a one-stop solution supplier engaged in the research, development, sale and service of spider crawler cranes. Our hotsale models are 2ton, 3ton, 5ton, 8ton and 12ton. All the spider cranes are approved CE certificate. Because of high quality products, competitive prices and excellent services, our products sell well all over the world, like USA, UK, UAE, Germany, France, Italy, Malaysia, Russia, Austria, Spain, Canada, Australia, etc. There are some professional technical engineers in our company, OEM and ODM orders are available. Welcome to contact us for official offers.
